xL402 Gateway Usage Guide

1. Overview

xL402 Gateway is a Lightning-native HTTP micropayment gateway that follows the x402-V2 HTTP transport specification. It uses standard HTTP status codes and headers (notably 402 Payment Required) to provide seamless Lightning micropayment metering, billing, and cryptographic proof validation for any HTTP API. The interaction follows a standard three-phase x402 model:

Request a protected resource and receive an HTTP 402 quote.
Pay the Lightning invoice (QR or wallet extension).
Redeem payment credential and receive the protected resource (HTTP 200).

It uses standard HTTP status codes and Base64-encoded x402 headers for cross-system interoperability:

PAYMENT-REQUIRED: quote payload returned in Phase 1.
PAYMENT-SIGNATURE: signed payment credential submitted in Phase 3.
PAYMENT-RESPONSE: settlement result returned in Phase 3 response.

2. Target Endpoint

https://xl402.bitdance.network/gateway/api/demo-tip-merchant/web-tip

Endpoint Composition

Base URL: https://xl402.bitdance.network/gateway
API path prefix: /api
Merchant code: demo-tip-merchant
Product code: web-tip
Full endpoint: /api/demo-tip-merchant/web-tip

Access requirement for these two fields:

merchantCode and productCode are routing identifiers managed by the gateway.
The merchant must pre-configure and enable this merchant-product route on the gateway before clients can access /api/{merchantCode}/{productCode}.
If either value is not configured (or mismatched), requests may fail with route/resource validation errors (for example, quote not found, unauthorized product, or unavailable resource).

General pattern:

{baseUrl}/api/{merchantCode}/{productCode}

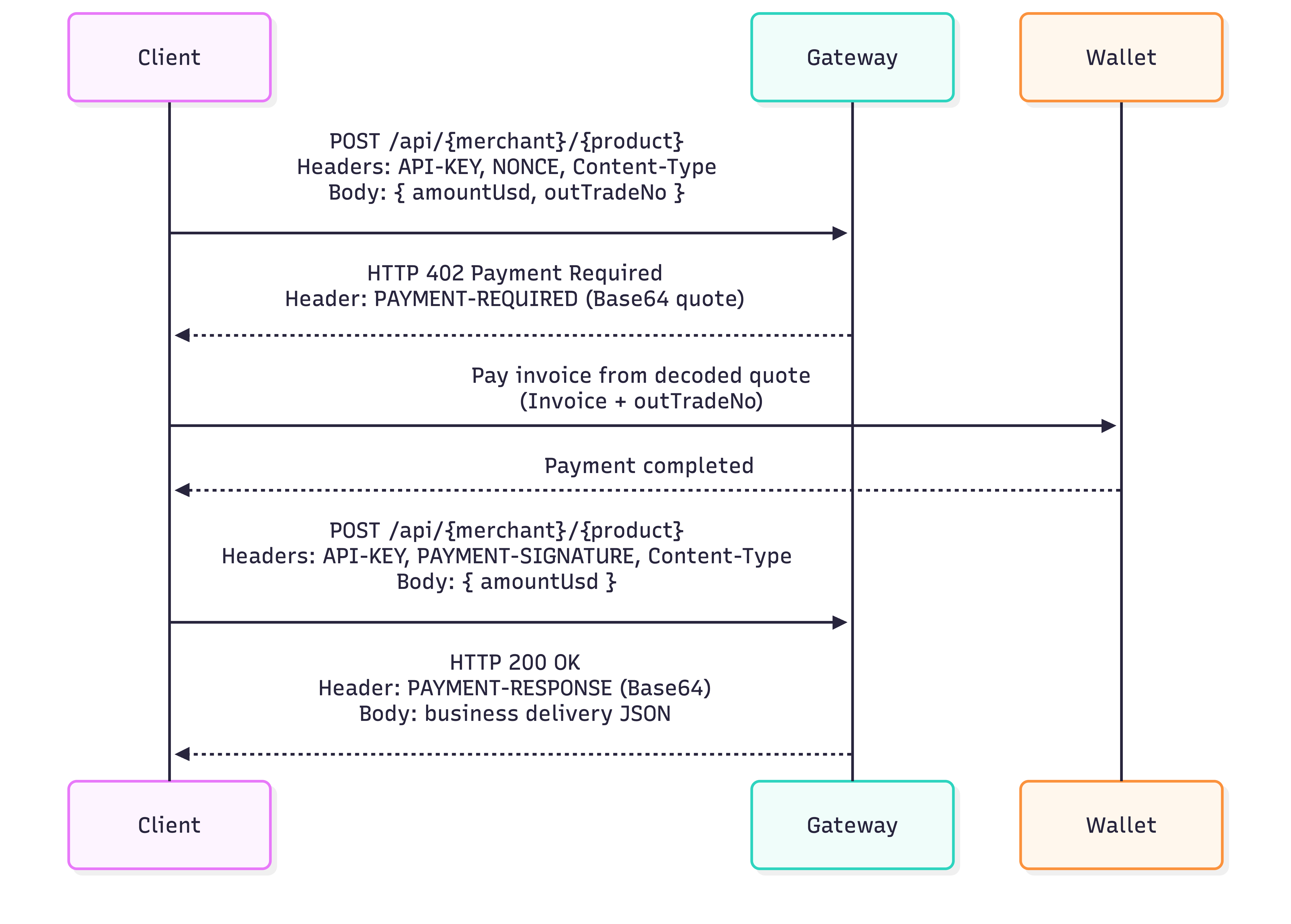

3. Interaction Flow Diagram

4. Standard Three-Phase Flow

4.1 Phase 1: Request Resource and Obtain 402 Quote

Request

Method:

POST

Headers:

API-KEY: merchant API key
NONCE: anti-replay unique value (UUID recommended)
Content-Type: application/json

Body:

{
  "amountUsd": 0.01,
  "outTradeNo": "b6191366509f45f896c8eecadf34e952"
}

Response (402)

HTTP status: 402 Payment Required
Header: PAYMENT-REQUIRED (Base64)

Response Header: PAYMENT-REQUIRED (Base64):

eyJhY2NlcHRzIjpbeyJhbW91bnQiOiIxMyIsImFzc2V0Ijoic2F0IiwiZXh0cmEiOnsiY3VycmVuY3kiOiJzYXQiLCJkZXNjcmlwdGlvbiI6IldlYiBUaXAgRGVtbyBbQm9sdDExIEludm9pY2VdIiwiZXhwaXJlcyI6IjIwMjYtMDgtMjVUMDc6MDA6MjUuOTYyNDgxNjg0WiIsImV4dCI6eyJhbW91bnRVc2QiOjAuMDEsIm91dFRyYWRlTm8iOiJiNjE5MTM2NjUwOWY0NWY4OTZjOGVlY2FkZjM0ZTk1MiJ9LCJpbnZvaWNlIjoibG5iYzEzMG4xcDRnNndlZ3BwNWx0ZXZzdjdweWhtYWFyeXJxYXAzdnNtaHpjeTJ3cGpmbmNlNXFweHN3eGxoOW05ZXFwN3FkcTV0cTZycXYzcTJwc2hqbXQ5ZGU2cWNxenpzeHFycnNzc3A1bG42cWEwMzYwZDMzZ2RmOWFreHhnbHR0c2ozbmw5Y3Q3bTY0YXk1ZXBjOGd5eXMzdTMyczlxeHBxeXNncXY5dms2bGZueTd4ejVraDR2YW15NHg0eW52and4dHhydnp6YzAzdHdmcDRkeHdhcXV3dnJ3OW1yeDhoMDlkcGw3bjQ3dHA4cHpoYTlhMHN5djM2aGo0Mm15eTVrczc0MGRoazdmM3NxNDR5bHh4Iiwibm9uY2UiOiI5YjI2YzUyNS1lZGZmLTQ4NWYtODZjOC1mYmY1NWZhMDEzNzEiLCJvcmRlcklkIjoiY2ViZjE1MWJjOTcyNGE4YzlkYjU4NmJmN2RlNTQ5NGEiLCJzdWJTY2hlbWUiOiJsaWdodG5pbmctYm9sdDExIn0sIm1heFRpbWVvdXRTZWNvbmRzIjo2MDAsIm5ldHdvcmsiOiJiaXAxMjI6MDAwMDAwMDAwMDE5ZDY2ODljMDg1YWUxNjU4MzFlOTM0ZmY3NjNhZTQ2YTJhNmMxNzJiM2YxYjYwYThjZTI2ZiIsInBheVRvIjoiYmMxcDNqbGV6Yzl2NnRtbWZhZWRoamxqN3owc3g0NDdrank0ZG5wY2s2amZ3MDRyNTRuazRkeHM5Z2VxZjJAYml0Ym9vbS5mdW4iLCJzY2hlbWUiOiJleGFjdCJ9XSwicmVzb3VyY2UiOnsiZGVzY3JpcHRpb24iOiJXZWIgVGlwIERlbW8iLCJ1cmwiOiJkZW1vLXRpcC1tZXJjaGFudC93ZWItdGlwIn0sIng0MDJWZXJzaW9uIjoyfQ==

Decoded quote payload (JSON):

{
  "accepts": [
    {
      "amount": "13",
      "asset": "sat",
      "extra": {
        "currency": "sat",
        "description": "Web Tip Demo [Bolt11 Invoice]",
        "expires": "2026-08-25T07:00:25.962481684Z",
        "ext": {
          "amountUsd": 0.01,
          "outTradeNo": "b6191366509f45f896c8eecadf34e952"
        },
        "invoice": "lnbc130n1p4g6wegpp5ltevsv7pyhmaaryrqap3vsmhzcy2wpjfnce5qpxswxlh9m9eqp7qdq5tq6rqv3q2pshjmt9de6qcqzzsxqrrsssp5ln6qa0360d33gdf9akxxglttsj3nl9ct7m64ay5epc8gyys3u32s9qxpqysgqv9vk6lfny7xz5kh4vamy4x4ynvjwxtxrvzzc03twfp4dxwaquwvrw9mrx8h09dpl7n47tp8pzha9a0syv36hj42myy5ks740dhk7f3sq44ylxx",
        "nonce": "9b26c525-edff-485f-86c8-fbf55fa01371",
        "orderId": "cebf151bc9724a8c9db586bf7de5494a",
        "subScheme": "lightning-bolt11"
      },
      "maxTimeoutSeconds": 600,
      "network": "bip122:000000000019d6689c085ae165831e934ff763ae46a2a6c172b3f1b60a8ce26f",
      "payTo": "bc1p3jlezc9v6tmmfaedhjlj7z0sx447kjy4dnpck6jfw04r54nk4dxs9geqf2@bitboom.fun",
      "scheme": "exact"
    }
  ],
  "resource": {
    "description": "Web Tip Demo",
    "url": "demo-tip-merchant/web-tip"
  },
  "x402Version": 2
}

4.2 Phase 2: QR / Extension Lightning Payment

Use the invoice from Phase 1 (accepts[0].extra.invoice) to complete payment. Two payment channels are supported:

QR Payment

Any wallet app that supports Bolt11 Invoice can scan and pay.

QR content: the invoice value from accepts[0].extra.invoice.

Extension Payment

BitPocket extension payment requires both outTradeNo and invoice from Phase 1.

Recommended inputs:

API-KEY (merchant API key)
invoice (Bolt11 invoice)
outTradeNo (from accepts[0].extra.ext.outTradeNo)

See LN Wallet API Send Sats By Invoice for extension payment API details.

4.3 Phase 3: Redeem Credential and Deliver Resource

Request

Method:

POST

Headers:

API-KEY
PAYMENT-SIGNATURE: Base64-encoded signed payment payload
Content-Type: application/json

Body:

{
  "amountUsd": 0.01
}

Request Header: PAYMENT-SIGNATURE (Base64):

eyJ4NDAyVmVyc2lvbiI6MiwicmVzb3VyY2UiOnsiZGVzY3JpcHRpb24iOiJXZWIgVGlwIERlbW8iLCJ1cmwiOiJkZW1vLXRpcC1tZXJjaGFudC93ZWItdGlwIn0sImFjY2VwdGVkIjp7ImFtb3VudCI6IjEzIiwiYXNzZXQiOiJzYXQiLCJleHRyYSI6eyJjdXJyZW5jeSI6InNhdCIsImRlc2NyaXB0aW9uIjoiV2ViIFRpcCBEZW1vIFtCb2x0MTEgSW52b2ljZV0iLCJleHBpcmVzIjoiMjAyNi0wOC0yNVQwNzowMDoyNS45NjI0ODE2ODRaIiwiZXh0Ijp7ImFtb3VudFVzZCI6MC4wMSwib3V0VHJhZGVObyI6ImI2MTkxMzY2NTA5ZjQ1Zjg5NmM4ZWVjYWRmMzRlOTUyIn0sImludm9pY2UiOiJsbmJjMTMwbjFwNGc2d2VncHA1bHRldnN2N3B5aG1hYXJ5cnFhcDN2c21oemN5MndwamZuY2U1cXB4c3d4bGg5bTllcXA3cWRxNXRxNnJxdjNxMnBzaGptdDlkZTZxY3F6enN4cXJyc3NzcDVsbjZxYTAzNjBkMzNnZGY5YWt4eGdsdHRzajNubDljdDdtNjRheTVlcGM4Z3l5czN1MzJzOXF4cHF5c2dxdjl2azZsZm55N3h6NWtoNHZhbXk0eDR5bnZqd3h0eHJ2enpjMDN0d2ZwNGR4d2FxdXd2cnc5bXJ4OGgwOWRwbDduNDd0cDhwemhhOWEwc3l2MzZoajQybXl5NWtzNzQwZGhrN2Yzc3E0NHlseHgiLCJub25jZSI6IjliMjZjNTI1LWVkZmYtNDg1Zi04NmM4LWZiZjU1ZmEwMTM3MSIsIm9yZGVySWQiOiJjZWJmMTUxYmM5NzI0YThjOWRiNTg2YmY3ZGU1NDk0YSIsInN1YlNjaGVtZSI6ImxpZ2h0bmluZy1ib2x0MTEifSwibWF4VGltZW91dFNlY29uZHMiOjYwMCwibmV0d29yayI6ImJpcDEyMjowMDAwMDAwMDAwMTlkNjY4OWMwODVhZTE2NTgzMWU5MzRmZjc2M2FlNDZhMmE2YzE3MmIzZjFiNjBhOGNlMjZmIiwicGF5VG8iOiJiYzFwM2psZXpjOXY2dG1tZmFlZGhqbGo3ejBzeDQ0N2tqeTRkbnBjazZqZncwNHI1NG5rNGR4czlnZXFmMkBiaXRib29tLmZ1biIsInNjaGVtZSI6ImV4YWN0In0sInBheWxvYWQiOnsibm9uY2UiOiI5YjI2YzUyNS1lZGZmLTQ4NWYtODZjOC1mYmY1NWZhMDEzNzEiLCJvcmRlcklkIjoiY2ViZjE1MWJjOTcyNGE4YzlkYjU4NmJmN2RlNTQ5NGEiLCJpbnZvaWNlIjoibG5iYzEzMG4xcDRnNndlZ3BwNWx0ZXZzdjdweWhtYWFyeXJxYXAzdnNtaHpjeTJ3cGpmbmNlNXFweHN3eGxoOW05ZXFwN3FkcTV0cTZycXYzcTJwc2hqbXQ5ZGU2cWNxenpzeHFycnNzc3A1bG42cWEwMzYwZDMzZ2RmOWFreHhnbHR0c2ozbmw5Y3Q3bTY0YXk1ZXBjOGd5eXMzdTMyczlxeHBxeXNncXY5dms2bGZueTd4ejVraDR2YW15NHg0eW52and4dHhydnp6YzAzdHdmcDRkeHdhcXV3dnJ3OW1yeDhoMDlkcGw3bjQ3dHA4cHpoYTlhMHN5djM2aGo0Mm15eTVrczc0MGRoazdmM3NxNDR5bHh4IiwicHJlaW1hZ2UiOiIifX0=

Decoded payment signature payload (JSON):

{
  "x402Version": 2,
  "resource": {
    "description": "Web Tip Demo",
    "url": "demo-tip-merchant/web-tip"
  },
  "accepted": {
    "amount": "13",
    "asset": "sat",
    "extra": {
      "currency": "sat",
      "description": "Web Tip Demo [Bolt11 Invoice]",
      "expires": "2026-08-25T07:00:25.962481684Z",
      "ext": {
        "amountUsd": 0.01,
        "outTradeNo": "b6191366509f45f896c8eecadf34e952"
      },
      "invoice": "lnbc130n1p4g6wegpp5ltevsv7pyhmaaryrqap3vsmhzcy2wpjfnce5qpxswxlh9m9eqp7qdq5tq6rqv3q2pshjmt9de6qcqzzsxqrrsssp5ln6qa0360d33gdf9akxxglttsj3nl9ct7m64ay5epc8gyys3u32s9qxpqysgqv9vk6lfny7xz5kh4vamy4x4ynvjwxtxrvzzc03twfp4dxwaquwvrw9mrx8h09dpl7n47tp8pzha9a0syv36hj42myy5ks740dhk7f3sq44ylxx",
      "nonce": "9b26c525-edff-485f-86c8-fbf55fa01371",
      "orderId": "cebf151bc9724a8c9db586bf7de5494a",
      "subScheme": "lightning-bolt11"
    },
    "maxTimeoutSeconds": 600,
    "network": "bip122:000000000019d6689c085ae165831e934ff763ae46a2a6c172b3f1b60a8ce26f",
    "payTo": "bc1p3jlezc9v6tmmfaedhjlj7z0sx447kjy4dnpck6jfw04r54nk4dxs9geqf2@bitboom.fun",
    "scheme": "exact"
  },
  "payload": {
    "nonce": "9b26c525-edff-485f-86c8-fbf55fa01371",
    "orderId": "cebf151bc9724a8c9db586bf7de5494a",
    "invoice": "lnbc130n1p4g6wegpp5ltevsv7pyhmaaryrqap3vsmhzcy2wpjfnce5qpxswxlh9m9eqp7qdq5tq6rqv3q2pshjmt9de6qcqzzsxqrrsssp5ln6qa0360d33gdf9akxxglttsj3nl9ct7m64ay5epc8gyys3u32s9qxpqysgqv9vk6lfny7xz5kh4vamy4x4ynvjwxtxrvzzc03twfp4dxwaquwvrw9mrx8h09dpl7n47tp8pzha9a0syv36hj42myy5ks740dhk7f3sq44ylxx",
    "preimage": ""
  }
}

Response (200)

Response Header: PAYMENT-RESPONSE (Base64):

eyJleHRlbnNpb25zIjp7Imludm9pY2UiOiJsbmJjMTMwbjFwNGc2d2VncHA1bHRldnN2N3B5aG1hYXJ5cnFhcDN2c21oemN5MndwamZuY2U1cXB4c3d4bGg5bTllcXA3cWRxNXRxNnJxdjNxMnBzaGptdDlkZTZxY3F6enN4cXJyc3NzcDVsbjZxYTAzNjBkMzNnZGY5YWt4eGdsdHRzajNubDljdDdtNjRheTVlcGM4Z3l5czN1MzJzOXF4cHF5c2dxdjl2azZsZm55N3h6NWtoNHZhbXk0eDR5bnZqd3h0eHJ2enpjMDN0d2ZwNGR4d2FxdXd2cnc5bXJ4OGgwOWRwbDduNDd0cDhwemhhOWEwc3l2MzZoajQybXl5NWtzNzQwZGhrN2Yzc3E0NHlseHgiLCJzZXR0bGVkQXQiOjE3ODc2NDA2NjZ9LCJuZXR3b3JrIjoiYmlwMTIyOjAwMDAwMDAwMDAxOWQ2Njg5YzA4NWFlMTY1ODMxZTkzNGZmNzYzYWU0NmEyYTZjMTcyYjNmMWI2MGE4Y2UyNmYiLCJwYXllciI6ImFub255bW91cyIsInN1Y2Nlc3MiOnRydWUsInRyYW5zYWN0aW9uIjoiZmFmMmM4MzNjMTI1ZjdkZThjODMwNzQzMTY0Mzc3MTYwOGE3MDY0OTllMzM0MDA0ZDA3MWJmNzJlY2I5MDA3YyJ9

Response Header Decoded (JSON):

{
  "extensions": {
    "invoice": "lnbc130n1p4g6wegpp5ltevsv7pyhmaaryrqap3vsmhzcy2wpjfnce5qpxswxlh9m9eqp7qdq5tq6rqv3q2pshjmt9de6qcqzzsxqrrsssp5ln6qa0360d33gdf9akxxglttsj3nl9ct7m64ay5epc8gyys3u32s9qxpqysgqv9vk6lfny7xz5kh4vamy4x4ynvjwxtxrvzzc03twfp4dxwaquwvrw9mrx8h09dpl7n47tp8pzha9a0syv36hj42myy5ks740dhk7f3sq44ylxx",
    "settledAt": 1787640666
  },
  "network": "bip122:000000000019d6689c085ae165831e934ff763ae46a2a6c172b3f1b60a8ce26f",
  "payer": "anonymous",
  "success": true,
  "transaction": "faf2c833c125f7de8c8307431643771608a706499e334004d071bf72ecb9007c"
}

Delivered response body (JSON):

{
  "code": "200",
  "message": "Request successful",
  "data": {
    "merchantCode": "demo-tip-merchant",
    "productCode": "web-tip",
    "paidUsd": 0.01,
    "paidSat": 13,
    "validUntil": null,
    "msg": "payment already verified"
  },
  "succ": true
}

Response (402 Invoice unpaid)

For Step 3 settlement, a redemption failure can happen when the invoice is not paid. In this case, PAYMENT-RESPONSE returns success: false with an errorReason. invalid_exact_lightning_invoice_unpaid is one example to identify unpaid invoice, and there are other possible failure errorReason values as well.

Response Header: PAYMENT-RESPONSE (Base64):

eyJlcnJvclJlYXNvbiI6ImludmFsaWRfZXhhY3RfbGlnaHRuaW5nX2ludm9pY2VfdW5wYWlkIiwic3VjY2VzcyI6ZmFsc2V9

Response Header Decoded (JSON):

{
  "errorReason": "invalid_exact_lightning_invoice_unpaid",
  "success": false
}

5. Field Reference

5.1 Request Headers

API-KEY: Merchant authentication key.
NONCE: Replay protection token for quote requests.
PAYMENT-SIGNATURE: Base64 credential for settlement (Phase 3).
Content-Type: Should be application/json.

5.2 Request Body

Phase 1 body:

amountUsd (number): target payment amount in USD.
outTradeNo (string): merchant/client order reference; recommended for wallet extension payment traceability.

Phase 3 body:

amountUsd (number): settlement amount context.

5.3 `PAYMENT-REQUIRED` Decoded Quote Fields

Top-level:

x402Version: x402 protocol version.
resource: protected resource metadata.
accepts[]: list of accepted payment methods/quotes.

accepts[0] common fields:

amount: satoshi amount as string.
asset: payment asset, usually sat.
scheme: payment mode, e.g. exact.
network: chain/network identifier.
payTo: receiver identity/address info.
maxTimeoutSeconds: quote timeout.
extra: invoice and business extension data.

accepts[0].extra:

invoice: Bolt11 invoice used in Phase 2.
nonce: quote-side nonce.
orderId: gateway order identifier.
expires: quote expiration timestamp.
subScheme: Lightning method detail.
ext.amountUsd: business USD amount snapshot.
ext.outTradeNo: business order reference used by extension flow.

5.4 `PAYMENT-SIGNATURE` Decoded Fields

Top-level:

x402Version
resource
accepted: copied quote item being redeemed.
payload: settlement payload.

payload:

nonce: nonce for settlement verification.
orderId: quote order identifier.
invoice: Bolt11 invoice string.
preimage: preimage value (empty string allowed in this flow when gateway verifies settled status).

5.5 `PAYMENT-RESPONSE` Decoded Fields

success (boolean): settlement verification result.
errorReason (string, optional): failure reason code when success = false.
transaction (string): payment transaction identifier/hash.
network (string): network identifier.
payer (string): payer identity (if available).
extensions.invoice (string): related invoice.
extensions.settledAt (number): settlement timestamp (epoch seconds).

Failure note:

invalid_exact_lightning_invoice_unpaid indicates the invoice was not paid at redemption time.
This is only one failure case. Other errorReason values may be returned for different settlement failures.

5.6 Delivered Response Body Fields

Top-level:

code: business status code ("200" for success).
message: response message.
succ: success flag.
data: delivered business payload.

data:

merchantCode (string): merchant identifier resolved by the gateway, e.g. demo-tip-merchant.
productCode (string): product/resource code resolved by the gateway, e.g. web-tip.
paidUsd (number): USD amount recognized and settled for this request.
paidSat (number): satoshi amount recognized and settled for this request.
validUntil (string | null): optional validity deadline for delivered data/resources. null means no extra validity window is applied.
msg (string): business-level settlement message, e.g. payment already verified.

Configuration note:

merchantCode and productCode in the success payload indicate which configured merchant/product route actually handled the request.
These values are not arbitrary client inputs in production usage; they should correspond to merchant routes pre-registered on the gateway.

For a successful settlement, this response usually appears as:

code = "200"
succ = true
data.paidUsd and data.paidSat are typically present and positive for paid resources

6. CURL Examples

Phase 1: Get a quote (402)

curl -X POST https://xl402.bitdance.network/gateway/api/demo-tip-merchant/web-tip \
  -H "API-KEY: <YOUR_API_KEY>" \
  -H "NONCE: 738aab87-fdde-4eb2-b072-02d7a22b306a" \
  -H "Content-Type: application/json" \
  -d '{"amountUsd": 0.01, "outTradeNo": "b6191366509f45f896c8eecadf34e952"}' -v

Phase 3: Redeem with PAYMENT-SIGNATURE

curl -X POST https://xl402.bitdance.network/gateway/api/demo-tip-merchant/web-tip \
  -H "API-KEY: <YOUR_API_KEY>" \
  -H "PAYMENT-SIGNATURE: <BASE64_PAYMENT_SIGNATURE>" \
  -H "Content-Type: application/json" \
  -d '{"amountUsd": 0.01}' -v

7. Practical Notes

Always preserve and reuse outTradeNo from Phase 1 for extension-based payment flows.
Treat quote data as short-lived. expires and maxTimeoutSeconds define validity.
For settlement success, prioritize PAYMENT-RESPONSE decoded success: true together with HTTP 200.
Keep NONCE unique for new quote requests to avoid replay risks.
